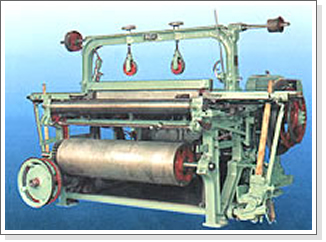

Square Opening Wire Mesh Weaving Machine

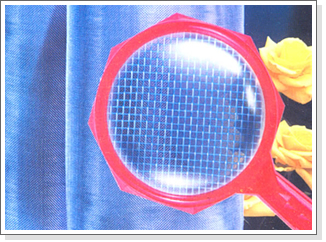

The machine can be utilized for weaving selvage insect mesh. The machine is of simple and rational construction. It performs satisfactorily and runs smoothly. The machine has been exported to Thailand, Mexico, Indonesia and other parts of the world, and won the high appraise from customers. The insect mesh weaving machine is available to weave from mesh 8 to mesh 24. Three types of width available: 1.00m, 1.22m, 1.52m.

Motor Power |
JQ-31-6 2.2-4KW |
Speed of main axle |
32.8 r/min |
Speed of crank |
65.5 r/min |
Shuttle |
240mm |
Pitch |
110mm |
Breadth |
1m-2m |
Mesh |
25.8-40mesh/inch |
Wire diameter |
16-19-34gauge |
(Length x breadth x height) |
(3830) x 2830 x 2200 x 1600mm |
Weight |
2.5-4ton |
Main parameter |
Mesh width : |
Mesh hole width : |
Special mesh 40-350 mesh/inch |
Speed of bent axle : |
Power : |
Gross weight : |
Size : |
Max 1600mm |
square mesh 10-100mesh/inch |
- |
53 r/min |
4KW |
|
|
Max 1300mm |
square mesh 10-100 mesh/inch |
- |
53 r/min |
4KW |
6000KG |
2419X
3225X
1849mm |
|
