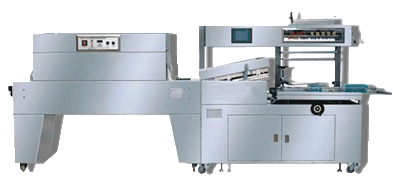

Shrink Packing Machine
L type shrink packaging machine which uses roll-fed thermoplastic
film folded in half along its length. A product or group of products
are placed between the two halves of film. The film is then sealed
and cut off around the product with an L shaped sealing bar. The
pack is then passed through a heated tunnel to shrink the film
around the product to produce a tightly enclosed pack. Widely used
for wrapping books, video tapes, floppy disks, foodstuffs such as
dried fish, boxed products, etc.
Main technical
parameters:
Voltage |
380,50hz/3 phase |
|
Voltage |
380,50hz/3 phase |
Power |
7kw |
Power |
1.35kw |
Max conveyor speed |
10m/min |
Max package size |
560x400x125mm |
Package speed |
35 packs/min |
Max package size |
400Lx270H |
Pressure |
0.5mpa |
Overall diameter |
1600x600x1260mm |
Overall diameter |
1500x770x1450mm |
weight |
160kg |
weight |
300kg |
Main material |
Carbon steel |
Main material |
Carbon steel |
|
