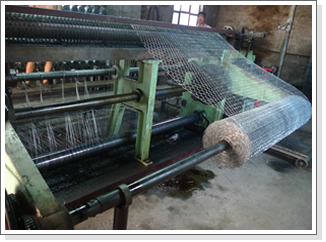

Hexagonal Wire Netting Machine

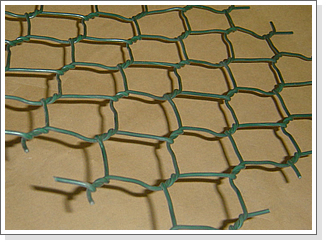

The Hexagonal Wire Netting Machine series of weaving machine suit to weave hexagonal wire netting in normal and reverse twist.
They are classified five types according to the different opening: 1", 1 1/4", 11/2", 2", 3".
The machine can continuously work, below are the characteristics:
Smooth running, low noise, automatically stop and
give an alarm when there's something wrong
Scope of weaving: 1.22m double width or 2.44m single
width
Used clutch arrester, neatly handle
Concentrate lubricating system, simply operate
The motor's power: 2.2KW. Three-phase current
This series of machines sell well to Europe, America,Japan, Australia and East and South Asia.

Theoretic Parameter
| Type |
Mesh size |
Max. width (mm) |
Max. wire dia.(mm) |
Theoretic produce speed |
Outer size(mm)
length x width x height |
Gross weight(T) |
| single width |
double width |
mesh/minute |
meter/hour |
| 1" |
27 |
2440 |
1200 |
1.2 |
38 |
62 |
4500x2200x1450 |
4.6 |
| 1 1/4"" |
32 |
2440 |
1200 |
1.2 |
38 |
66 |
4500x2200x1450 |
4.6 |
| 1 1/2" |
44 |
2440 |
1200 |
1.4 |
38 |
99 |
4500x2200x1450 |
4.6 |
| 2" |
56 |
2440 |
1200 |
1.4 |
38 |
131 |
4500x2200x1450 |
4.6 |
| 3" |
76 |
2440 |
1200 |
1.8 |
38 |
169 |
4500x2200x1450 |
4.6 |
|
