Barbed Wire Machine

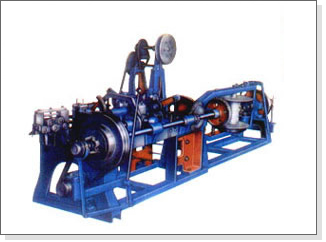

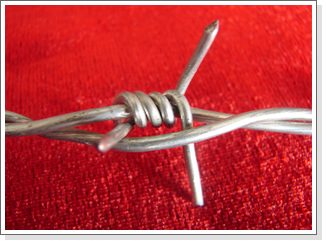

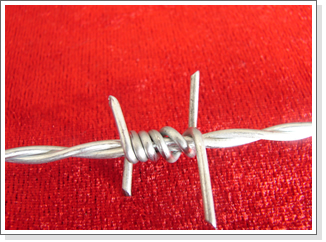

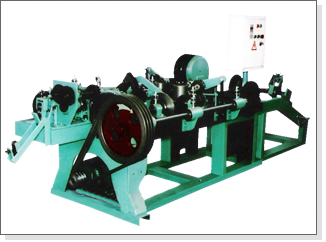

Barbed Wire Machine is designed to produce screens with double (or single). Stranded barbed steel wire, thermo-plated with zinc. The machine is of horizontal design, consisting of two parts, assembled together at the middle. It is safe and reliable in operation, capable of turning out high quality products with consistency.


Gauge of Strand and Barb in B.W.G. |
Approximate Length per Kilo in Meter |
Barbs spacing 3" |
Barbs spacing 4" |
Barbs spacing 5" |
Barbs spacing 6" |
12x12 |
6.0617 |
6.7590 |
7.2700 |
7.6376 |
12x14 |
7.3335 |
7.9051 |
8.3015 |
8.5741 |
12-1/2x12-1/2 |
6.9223 |
7.7190 |
8.3022 |
8.7221 |
12-1/2x14 |
8.1096 |
8.814 |
9.2242 |
9.5620 |
13x13 |
7.9808 |
8.899 |
9.5721 |
10.7146 |
13x14 |
8.8448 |
9.6899 |
10.2923 |
10.7146 |
13-1/2x14 |
9.6079 |
10.6134 |
11.4705 |
11.8553 |
14x14 |
10.4569 |
11.6590 |
12.5423 |
13.1752 |
14-1/2x14-1/2 |
11.9875 |
13.3671 |
14.3781 |
15.1034 |
15x15 |
13.8927 |
15.4942 |
16.6666 |
17.5070 |
15-1/2x15-1/2 |
15.3491 |
17.1144 |
18.4060 |
19.3386 |
Specification
Diameter, screen wire |
2.5-3mm |
Material, screen wire & barbed wire |
Low carbon steel wire, thermo-plated with zinc |
Diameter, wire for barbs |
2-2.5mm |
total weight |
1500 kgs |
Barb pitch spacing |
3,4,5,6in |
power of motor |
3 kw |
PVC-plated |
- |
|
