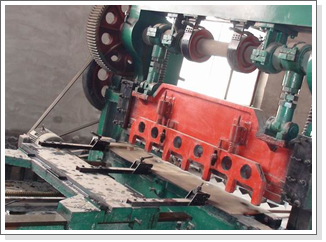

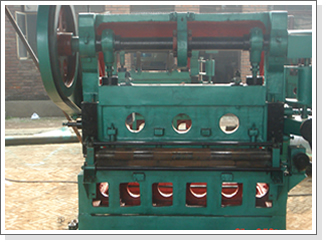

Expanded Metal Mesh Machine

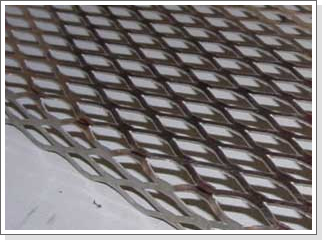

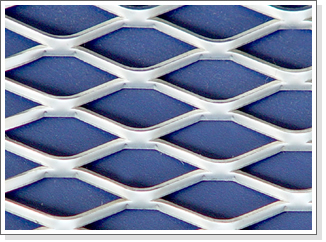

The machine is used for making of expanded metal mesh with sheet thickness of 1.2- 2.5mm and the sheet width of 2000mm. Expanded metal mesh can be used in construction, common hardware, window and door safety, machine protecting, etc.


| Main Parameter of Expanded Metal Mesh Machine |
|
| |
| Type |
AH25-6.3 |
AH25-16 |
AH25-25 |
AH25-63A |
AH25-63B |
AH25-160A |
AH25-160B |
| Depth(mm) |
max.1.0 |
max.1.0 |
max.1.5 |
max.2.5 |
max.3 |
max.6 |
max.6 |
| Width(mm) |
500 |
1000 |
1250 |
2000 |
2000 |
2500 |
2500 |
| Times |
180/min |
150/min |
150/min |
70/min |
45/min |
70/min |
20/min |
| Distance(mm) |
0-1.15 |
0-1.2 |
0-1.2 |
0-4 |
0-4 |
0-7 |
0-7 |
| Length of Mesh(mm) |
max.20 |
max.25 |
max.30 |
max.100 |
max.200 |
max.250 |
max.250 |
| Motor |
2.2KW |
3KW |
4KW |
11KW |
11KW |
22KW |
22KW |
| Weight |
0.95T |
2T |
3T |
10T |
10T |
18T |
20T |
| Measurement (mm) |
950 x 570 x1780 |
1800 x 1320 x1550 |
1940 x 1600 x 2010 |
2400 x 3500 x 2300 |
2400 x 3500 x 2300 |
5500 x 1750 x 3300 |
5500 x 1750 x 3300 |
|
|
| |
AHJ Series Straighter |
| |
| Type |
AHJ-05 |
AHJ-10 |
AHJ-125 |
AHJ-15 |
Depth |
| Width |
500mm |
1000mm |
1250mm |
1500mm |
max.3mm |
|
|
|
