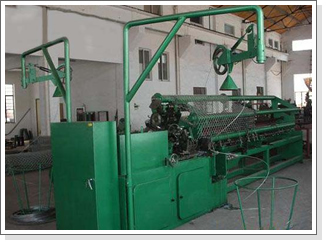

Chain Wire Mesh Machine
Main parameter of full automatic chain link machine
1.Width scope of weaving: 1-4m
Wire scope of weaving: 2-4mm
Mesh scope of weaving: 30-100mm
With 3 sets of mesh model at buyer's requirements
2.The machine is controlled by PLC automatic controller, so only one person is needed to operate it
3.The output per minute: for example: If the mesh is 50x50mm, width: 2m, the output will be: 1M2 min.
4.Suitable wire to the machine: the tensile scope of the wire 300-500N/M2

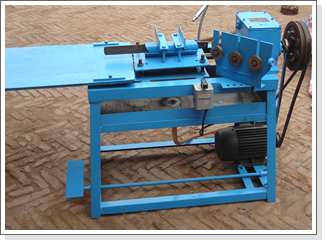

5.Use compacting machine to make it into rolls
6.Total power of equipment 11kw
7.Weight of equipment: 4200kg
8.Outside size: main machine: 6700x1430x1800mm


Specification diameter of wire |

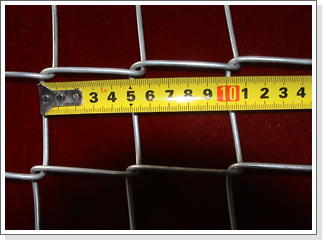

Mesh pitch(mm) |
30 |
40 |
50 |
60 |
70 |
80 |
100 |
wire Diameter (mm) |
2.0-2.5 |
2.0-2.5 |
2.0-3.0 |
2.0-4.0 |
2.0-4.0 |
2.0-4.0 |
2.0-4.0 |
|
