Razor Barbed Wire Machine
 We provides razor barbed wire machine to produce different sizes of razor wires.It is equipped with cutters of 5 different shapes.
Razor barbed wire coil diameter: 450mm; 500mm; 700mm; 960mm.
Razor barbed wire material: Galvanized wire and stainless steel wire.
Razor Wire Materials: hot dipped galvanized steel sheet and wire, stainless steel sheet and wire: AISI430 and AISI304.
We an expert in the manufacture of razor wire of various materials. Razor wire is mostly made in hot-dipped galvanized steel sheets and stainless steel sheets and wires.

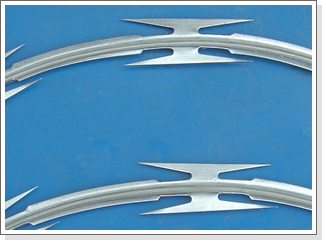

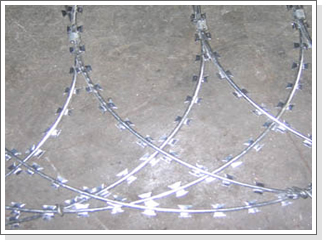

Razor wire in hot dipped galvanized sheet is economic cost compared with stainless steel razor wire. It has bright and beautiful blade of various types, offers good corrosion resistance. Galvanized razor wire can be supplied in straight line razor wire, single coils razor wire or crossed concertina razor coils.
Blade Types for Galvanized Razor Wire: BT-10, BT-12, BT-18, BT-22, BT-28, BT-30, BT-60, BT-65, etc.
Sizes of Hot-dipped Galvanized Razor Wire: Different length from 450mm to 980mm while the length and the diameter of the razor wire can be customized.

Blade Specification & Forms :
A1 |
|
. Thickness:0.5mm
. Wire Dia.:2.5mm
. Barb Length:10mm
. Barb Width:13mm
. Barb Spacing:26mm |
A2 |
|
. Thickness:0.5mm
. Wire Dia.:2.5mm
. Barb Length:20mm
. Barb Width:15mm
. Barb Spacing:33mm |
A3 |
|
. Thickness:0.5mm
. Wire Dia.:2.5mm
. Barb Length:15mm
. Barb Width:15mm
. Barb Spacing:33mm |
A4 |
|
. Thickness:0.5mm
. Wire Dia.:2.5mm
. Barb Length:22mm
. Barb Width:16mm
. Barb Spacing:36mm |
A5 |
|
. Thickness:0.6mm
. Wire Dia.:2.5mm
. Barb Length:60mm
. Barb Width:22mm
. Barb Spacing: 102mm |
Blade Specification Size:
Coil Dia.(mm) |
500 |
700 |
960 |
450 |
Number of Circles |
56 |
72 |
52 |
33 |
Standard Covered Length (m) |
8-9 |
11-13 |
8-10 |
8 |
Maximal Covered Length |
12 |
15 |
13 |
12 |
Special specification may subject to the customer requirements.
|
